SC23

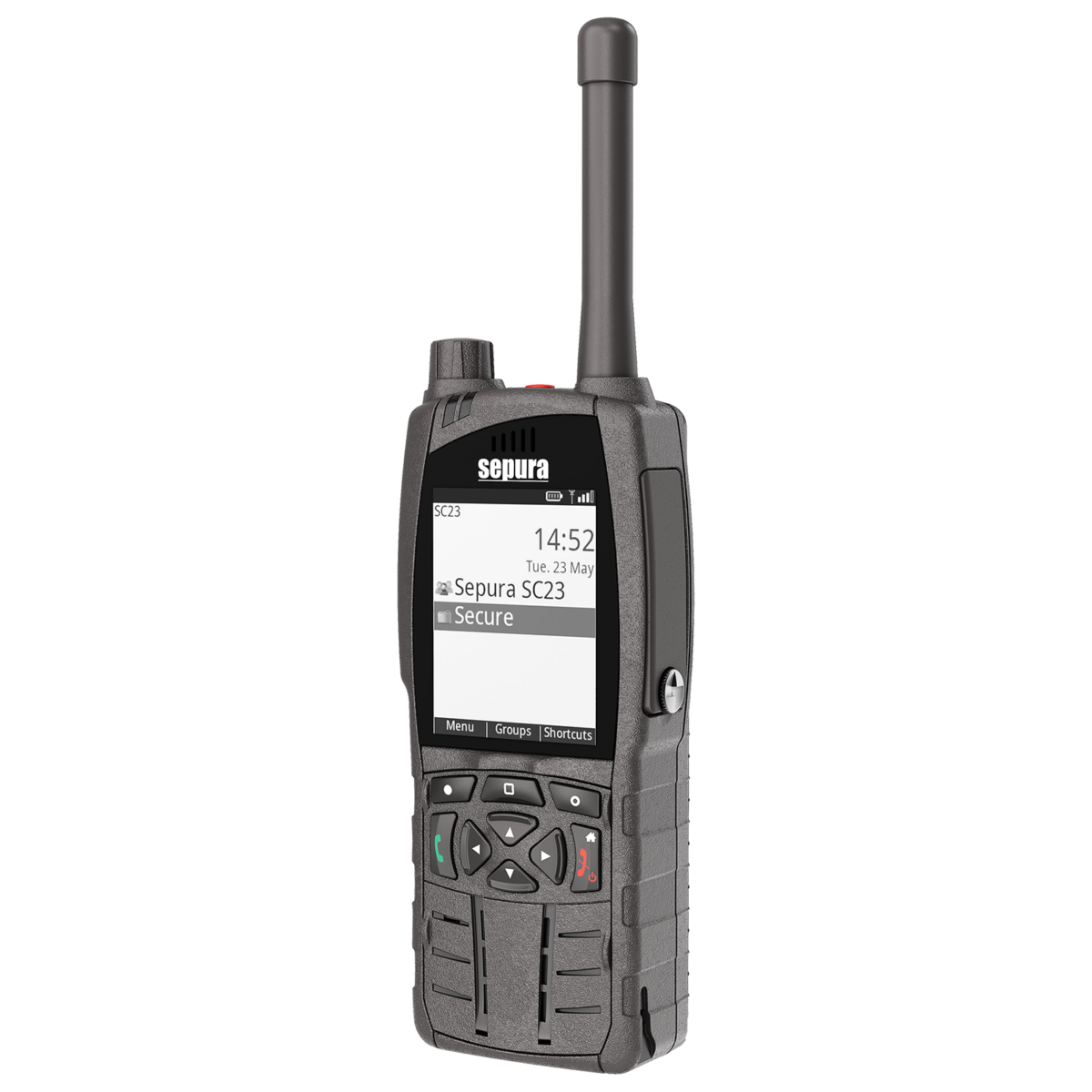

SC23 Hand-portable TETRA Radio
A streamlined TETRA radio, the SC23 offers powerful audio and the essential services needed for mission-critical operations.
Complimenting the existing SC Series TETRA hand portables, the SC23 features a reduced keypad and the same user interface and accessories as the SC20 and SC21.
Uncompromising on safety and ruggedness, the SC23 matches the power, environmental protection, and outstanding audio of Sepura’s flagship SC20 hand portable.
Trusted TETRA radios now in VHF
Ideal for organisations operating in expansive outdoor environments or complex underground networks, VHF TETRA combines the reliability and security of TETRA with the extended coverage of VHF.
Glove Friendly Operation
With large PTT key and ‘blind find’ emergency button
Missed Event Indicator
Signals missed calls/messages
Dustproof and Waterproof
IP65/66/67/68 certified
Large, Sunlight-Visible Screen
37 x 49mm high-resolution QVGA grayscale screen
Unique Water Porting Technology
For clear audio in wet conditions
sRAC Connector
For high-performance, easy to use accessories (and STP accessory re-use)
Reduced Keypad
Four-way navigation keys and three context keys for intuitive menu interaction
Functions
Secure
Supports ETSI and SFPG recommended Air Interface Encryption and End to End Encryption
WIDE RANGE OF ACCESSORIES
Wide range of accessories for audio, power, control and installation. Re-uses accessories compatible with SC2 and STP Series radios
ADVANCED SAFETY FEATURES
Protection and reassurance for lone or remote workers. Man-Down offers motion and tilt monitoring, local alarm and over-the-air alerts
COLOURED IDENTIFICATION OPTIONS
Easily differentiate between teams of users with a coloured insert
ADVANCED POSITIONING CAPABILITY
Highly sensitive GNSS positioning, including compatibility with GPS
WAKE-ON ALARM
Allows users to activate an emergency call even when the hand-portable radio is switched off
Exceptional RF Power and Sensitivity
Class 3 RF Power couple with exceptional receive sensitivity gives the SC2 series extended operational range
Water Porting
Expels water and dust, maintaining clear communication in extreme environments
AppSPACE
Enables deployment of feature rich apps which can include connectivity to external devices, execution of bespoke business logic, display and transmission of data plus much more
Easy-clean design
Rinse in running water – ideal for use in dusty or demanding environments, such as mining or construction
Smart Menus
User-defined Smart Menus give quick access to hundreds of soft key features
Shortcut and Notification Bar
Quick access to commonly used features with visual update from the top level screen
INTEGRATED RFID TAG
Simple and easy-to-use asset tracking and management
Powerful Audio
Powerful 2W speaker provides clear audio even in high noise environments
UHF OR VHF BAND
Available in a range of UHF and VHF frequency bands.
Technical Data
The full SC23 technical specifications are available for download at the bottom of this page.
SC23 TETRA Hand-portable Radio Specification
| Dimensions | 61 X 139 X 32.5 mm |
|---|---|
| Weight | 241 g |
| Battery | 1160 mAh & 1880 mAh |
| RF Power | Class 3, Class 3L, Class 4 |
| Frequency Bands | 136-174MHz, 380-430MHz, 403-470MHz, 806-870MHz |
| Static Receiver Sensitivity | -116 dBm |
| Dynamic Receiver Sensitivity | -107 dBm |
| Speaker Audio | 2 W |
| Operational Temperature (conformance tested) | -20°C to +60°C |
| Operational Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| IP Rating | IP65, IP66, IP67, IP68 |
| Screen | 37 X 49 mm, TFT, QVGA 320 X 240 pixels greyscale |
| Haptics | Yes |
| Side Soft keys | Yes |
| Water Porting | Yes |
| GNSS | GPS, Beidou, GLONASS, Galileo |
